TCS34725FN Color Sensor SKU: AngelTCS34725US

File:TCS34725FN Color Sensor-A.jpg

TCS34725FN Color Sensor

Description

This module is the core color sensor of the TCS34725FN color light digitizer of AMS AG. The sensor provides digital output of red, green, blue (RGB) and clear light sensing values. The integrated infrared blocking filter can minimize the infrared spectral components of the incident light, and can accurately perform color measurement. It has high sensitivity, wide dynamic range and infrared blocking filter. Minimize the effects of IR and UV spectral components to produce accurate color measurements. And with ambient light intensity detection and shieldable interrupt. Communication via I2C interface.

---

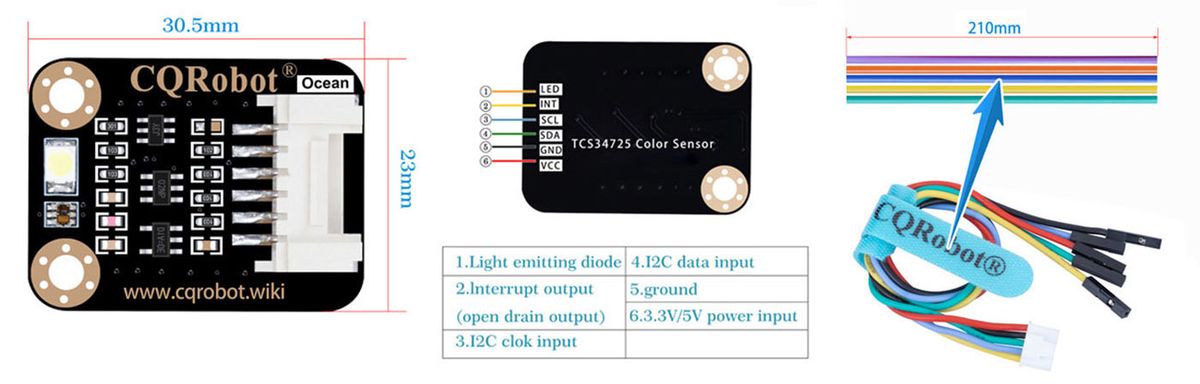

Interface Description and Size

---

Specifications

• Product Category: Light to Digital Converters/TCS34725FN
• Peak Wavelength: 525 nm
• Maximum Operating Frequency: 400 kHz
• Operating Supply Voltage: 3.3V to 5V
• Operating Current: 235 uA
• Maximum Operating Temperature: +70 Degree Celsius
• Minimum Operating Temperature: -30 Degree Celsius
• Interface Type: I2C
• Maximum Fall Time: 300 ns
• Maximum Rise Time: 300 ns
• Resolution: 4-ch RGBC, 16-bit per ch
• Recommended Measuring Distance: 20mm
• Dimension: 30.5mm * 23mm
• Mounting hole size: 3.0mm

Ocean interface Cable Specifications

• Cable Specifications: 22AWG
• Material: Silicone
• Length: 21cm
• Withstand Voltage: Less Than 50V
• Withstand Current: Less Than 1000MA
• Line Sequence: Red-Positive Power Supply; Black-Negative Power Supply; Green-I2C Data Input; Blue-I2C Clock Input; Yellow-Interrupt Output; Orange-Light Emitting Diode.

---

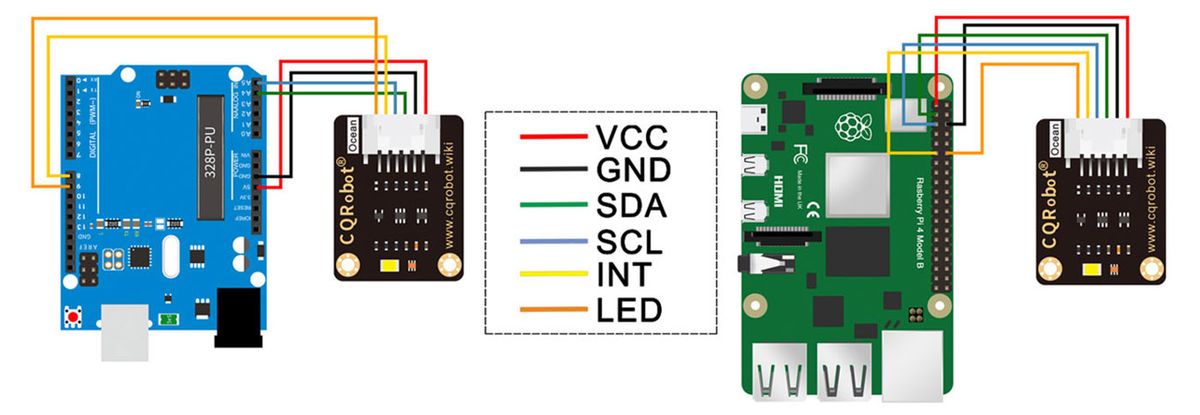

Connection Diagram

---

DEMO Code

Media:TCS34725_Color_Sensor_code.zip

---
