ADS1115 16-Bit ADC Module SKU: CQRADS1115

ADS1115 16-Bit ADC Module

Description

The ADS1115 16-bit AD conversion module can accurately collect and convert analog signals. Through this AD module, the Raspberry Pi main control board can easily use a variety of analog Arduino series sensors to measure various signals. Perceive this world.

Raspberry Pi is a common main control board with powerful functions. However, the pins of the Raspberry Pi main control board can only read digital signals. If you need to read the signals of analog sensors or devices, you can only connect an analog-to-digital conversion (ADC) module, which is not convenient to use.

Ocean: ADS1115 16-bit AD conversion module is optimized for Raspberry Pi and Arduino series analog sensors, which greatly reduces the difficulty of using Arduino series analog sensors on the Raspberry Pi main control board. It is plug and play, no soldering, and very convenient. . The Arduino series of sensors are numerous and rich in types, which can meet the needs of the Raspberry Pi main control board for various sensors.

This module uses the 16-bit ADC chip ADS1115, which supports a wide voltage supply from 3.3V to 5V. The chip has a precision reference voltage and programmable gain adjustment (PGA), so it can be used for weak signals or signals with large changes. Accurate acquisition and conversion, so this module is also suitable for all kinds of occasions where the main control board needs to accurately collect analog signals.

One AD module can read 4 channels of analog signals. Due to the onboard I2C address selection switch, it supports the cascade of 2 AD modules and reads 8 channels of analog signals, which is sufficient to meet the needs of various scenarios .

Features

Support 3.3V to 5.0V Wide Supply Voltage, 3.3V I2C digital level signal, optimized for Raspberry Pi.
Ocean I2C Interface, plug and play, 22AWG environmentally friendly high temperature resistant silicone wire, JST 4-Pin to DuPont female single head, wire length 210mm.
On-board I2C address selection switch, supports cascade of two ADC modules.
Color coded 3pin headers, plug and play with Arduino analog sensors.
Comes with development resources and manual (examples for Raspberry Pi/Arduino)

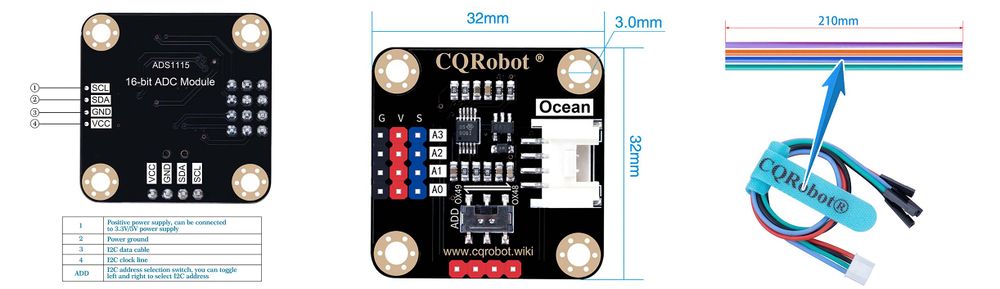

Interface Description and Size

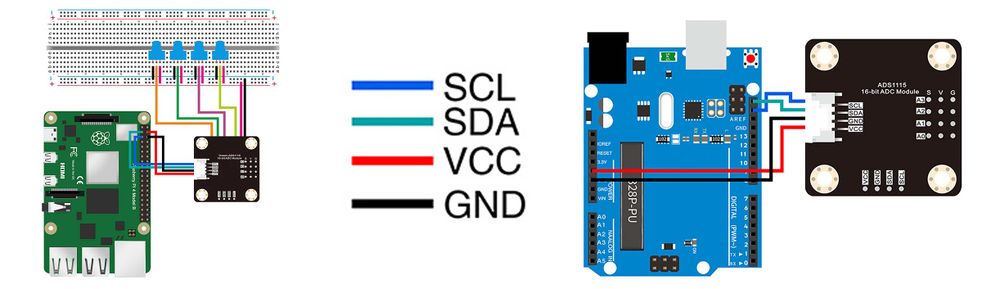

Connections and Examples

Specification

Sensor Specifications

Supply Voltage(VCC): 3.3V to 5.0V
Analog Signal Detection Range: 0 to VCC
Number of Analog Channels: 4
ADC Bits: 16 Bit
Operating Current: 2mA to 3mA (Not include sensor module)
Interface Type: Ocean I2C
Interface Level: High 3.3V, Low 0V
Product Size: 32mm * 32mm(1.26in * 1.26in)

Ocean Interface Wire Specifications

Cable specifications: 22AWG
Material: Silicone
Withstand Voltage: Less Than 50V
Withstand Current: Less Than 1000MA
Length: 21cm
Line Sequence: Black-Negative Power Supply, Red-Positive Power Supply, Green-SDA, Blue-SCL.

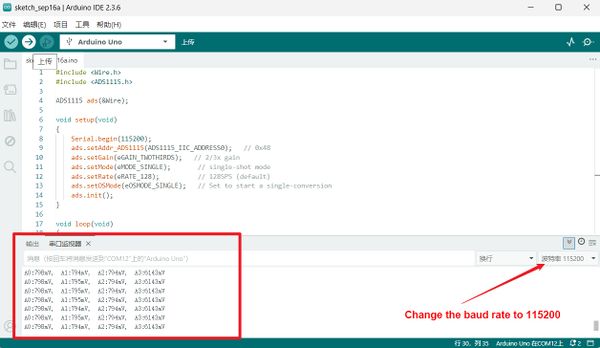

Test Code for Arduino

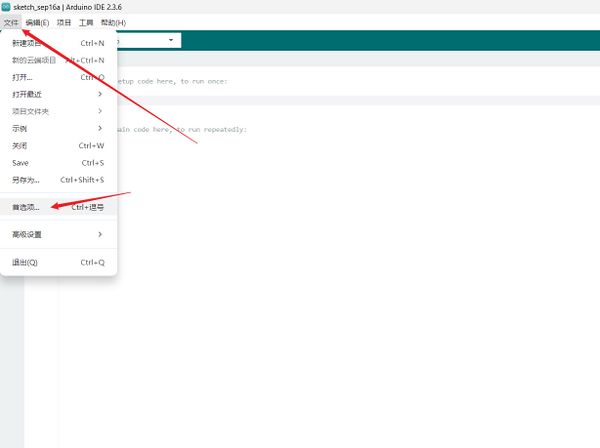

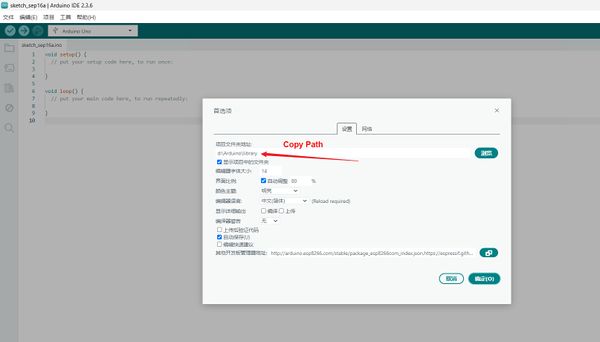

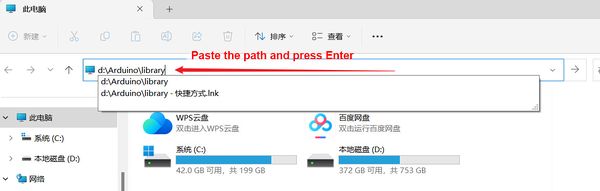

Please down the ADS1115 Library and install it.

Description of the I2C Address in this Library:

ADS1115_IIC_ADDRESS0：0x48

ADS1115_IIC_ADDRESS1：0x49

/*
 * file ADS1115_ReadVoltage.ino
 *
 *
 * connect ADS1115 I2C interface with your board (please reference board compatibility)
 *
 * The voltage value read by A0 A1 A2 A3 is printed through the serial port.
 *
 */
#include <Wire.h>
#include <ADS1115.h>

ADS1115 ads;

void setup(void)
{
    Serial.begin(115200);
    ads.setAddr_ADS1115(ADS1115_IIC_ADDRESS0);   // 0x48
    ads.setGain(eGAIN_TWOTHIRDS);   // 2/3x gain
    ads.setMode(eMODE_SINGLE);       // single-shot mode
    ads.setRate(eRATE_128);          // 128SPS (default)
    ads.setOSMode(eOSMODE_SINGLE);   // Set to start a single-conversion
    ads.init();
}

void loop(void)
{
    if (ads.checkADS1115())
    {
        int16_t adc0, adc1, adc2, adc3;
        adc0 = ads.readVoltage(0);
        Serial.print("A0:");
        Serial.print(adc0);
        Serial.print("mV,  ");
        adc1 = ads.readVoltage(1);
        Serial.print("A1:");
        Serial.print(adc1);
        Serial.print("mV,  ");
        adc2 = ads.readVoltage(2);
        Serial.print("A2:");
        Serial.print(adc2);
        Serial.print("mV,  ");
        adc3 = ads.readVoltage(3);
        Serial.print("A3:");
        Serial.print(adc3);
        Serial.println("mV");
    }
    else
    {
        Serial.println("ADS1115 Disconnected!");
    }

    delay(1000);
}

Test Code for Raspberry Pi

File: CQRobot_ADS1115.py

import smbus
import time

# Get I2C bus
bus = smbus.SMBus(1)

# I2C address of the device
ADS1115_IIC_ADDRESS0				= 0x48
ADS1115_IIC_ADDRESS1				= 0x49

# ADS1115 Register Map
ADS1115_REG_POINTER_CONVERT			= 0x00 # Conversion register
ADS1115_REG_POINTER_CONFIG			= 0x01 # Configuration register
ADS1115_REG_POINTER_LOWTHRESH		= 0x02 # Lo_thresh register
ADS1115_REG_POINTER_HITHRESH		= 0x03 # Hi_thresh register

# ADS1115 Configuration Register
ADS1115_REG_CONFIG_OS_NOEFFECT		= 0x00 # No effect
ADS1115_REG_CONFIG_OS_SINGLE		= 0x80 # Begin a single conversion
ADS1115_REG_CONFIG_MUX_DIFF_0_1		= 0x00 # Differential P = AIN0, N = AIN1 (default)
ADS1115_REG_CONFIG_MUX_DIFF_0_3		= 0x10 # Differential P = AIN0, N = AIN3
ADS1115_REG_CONFIG_MUX_DIFF_1_3		= 0x20 # Differential P = AIN1, N = AIN3
ADS1115_REG_CONFIG_MUX_DIFF_2_3		= 0x30 # Differential P = AIN2, N = AIN3
ADS1115_REG_CONFIG_MUX_SINGLE_0		= 0x40 # Single-ended P = AIN0, N = GND
ADS1115_REG_CONFIG_MUX_SINGLE_1		= 0x50 # Single-ended P = AIN1, N = GND
ADS1115_REG_CONFIG_MUX_SINGLE_2		= 0x60 # Single-ended P = AIN2, N = GND
ADS1115_REG_CONFIG_MUX_SINGLE_3		= 0x70 # Single-ended P = AIN3, N = GND
ADS1115_REG_CONFIG_PGA_6_144V		= 0x00 # +/-6.144V range = Gain 2/3
ADS1115_REG_CONFIG_PGA_4_096V		= 0x02 # +/-4.096V range = Gain 1
ADS1115_REG_CONFIG_PGA_2_048V		= 0x04 # +/-2.048V range = Gain 2 (default)
ADS1115_REG_CONFIG_PGA_1_024V		= 0x06 # +/-1.024V range = Gain 4
ADS1115_REG_CONFIG_PGA_0_512V		= 0x08 # +/-0.512V range = Gain 8
ADS1115_REG_CONFIG_PGA_0_256V		= 0x0A # +/-0.256V range = Gain 16
ADS1115_REG_CONFIG_MODE_CONTIN		= 0x00 # Continuous conversion mode
ADS1115_REG_CONFIG_MODE_SINGLE		= 0x01 # Power-down single-shot mode (default)
ADS1115_REG_CONFIG_DR_8SPS			= 0x00 # 8 samples per second
ADS1115_REG_CONFIG_DR_16SPS			= 0x20 # 16 samples per second
ADS1115_REG_CONFIG_DR_32SPS			= 0x40 # 32 samples per second
ADS1115_REG_CONFIG_DR_64SPS			= 0x60 # 64 samples per second
ADS1115_REG_CONFIG_DR_128SPS		= 0x80 # 128 samples per second (default)
ADS1115_REG_CONFIG_DR_250SPS		= 0xA0 # 250 samples per second
ADS1115_REG_CONFIG_DR_475SPS		= 0xC0 # 475 samples per second
ADS1115_REG_CONFIG_DR_860SPS		= 0xE0 # 860 samples per second
ADS1115_REG_CONFIG_CMODE_TRAD		= 0x00 # Traditional comparator with hysteresis (default)
ADS1115_REG_CONFIG_CMODE_WINDOW		= 0x10 # Window comparator
ADS1115_REG_CONFIG_CPOL_ACTVLOW		= 0x00 # ALERT/RDY pin is low when active (default)
ADS1115_REG_CONFIG_CPOL_ACTVHI		= 0x08 # ALERT/RDY pin is high when active
ADS1115_REG_CONFIG_CLAT_NONLAT		= 0x00 # Non-latching comparator (default)
ADS1115_REG_CONFIG_CLAT_LATCH		= 0x04 # Latching comparator
ADS1115_REG_CONFIG_CQUE_1CONV		= 0x00 # Assert ALERT/RDY after one conversions
ADS1115_REG_CONFIG_CQUE_2CONV		= 0x01 # Assert ALERT/RDY after two conversions
ADS1115_REG_CONFIG_CQUE_4CONV		= 0x02 # Assert ALERT/RDY after four conversions
ADS1115_REG_CONFIG_CQUE_NONE		= 0x03 # Disable the comparator and put ALERT/RDY in high state (default)

mygain=0x02
coefficient=0.125
addr_G=ADS1115_IIC_ADDRESS0
class ADS1115():
	def setGain(self,gain):
		global mygain
		global coefficient
		mygain=gain
		if mygain == ADS1115_REG_CONFIG_PGA_6_144V:
			coefficient = 0.1875
		elif mygain == ADS1115_REG_CONFIG_PGA_4_096V:
			coefficient = 0.125
		elif mygain == ADS1115_REG_CONFIG_PGA_2_048V:
			coefficient = 0.0625
		elif mygain == ADS1115_REG_CONFIG_PGA_1_024V:
			coefficient = 0.03125
		elif mygain == ADS1115_REG_CONFIG_PGA_0_512V:
			coefficient = 0.015625
		elif  mygain == ADS1115_REG_CONFIG_PGA_0_256V:
			coefficient = 0.0078125
		else:
			coefficient = 0.125
	def setAddr_ADS1115(self,addr):
		global addr_G
		addr_G=addr
	def setChannel(self,channel):
		global mygain
		"""Select the Channel user want to use from 0-3
		For Single-ended Output
		0 : AINP = AIN0 and AINN = GND
		1 : AINP = AIN1 and AINN = GND
		2 : AINP = AIN2 and AINN = GND
		3 : AINP = AIN3 and AINN = GND
		For Differential Output
		0 : AINP = AIN0 and AINN = AIN1
		1 : AINP = AIN0 and AINN = AIN3
		2 : AINP = AIN1 and AINN = AIN3
		3 : AINP = AIN2 and AINN = AIN3"""
		self.channel = channel
		while self.channel > 3 :
			self.channel = 0

		return self.channel

	def setSingle(self):
		global addr_G
		if self.channel == 0:
			CONFIG_REG = [ADS1115_REG_CONFIG_OS_SINGLE | ADS1115_REG_CONFIG_MUX_SINGLE_0 | mygain | ADS1115_REG_CONFIG_MODE_CONTIN, ADS1115_REG_CONFIG_DR_128SPS | ADS1115_REG_CONFIG_CQUE_NONE]
		elif self.channel == 1:
			CONFIG_REG = [ADS1115_REG_CONFIG_OS_SINGLE | ADS1115_REG_CONFIG_MUX_SINGLE_1 | mygain | ADS1115_REG_CONFIG_MODE_CONTIN, ADS1115_REG_CONFIG_DR_128SPS | ADS1115_REG_CONFIG_CQUE_NONE]
		elif self.channel == 2:
			CONFIG_REG = [ADS1115_REG_CONFIG_OS_SINGLE | ADS1115_REG_CONFIG_MUX_SINGLE_2 | mygain | ADS1115_REG_CONFIG_MODE_CONTIN, ADS1115_REG_CONFIG_DR_128SPS | ADS1115_REG_CONFIG_CQUE_NONE]
		elif self.channel == 3:
			CONFIG_REG = [ADS1115_REG_CONFIG_OS_SINGLE | ADS1115_REG_CONFIG_MUX_SINGLE_3 | mygain | ADS1115_REG_CONFIG_MODE_CONTIN, ADS1115_REG_CONFIG_DR_128SPS | ADS1115_REG_CONFIG_CQUE_NONE]

		bus.write_i2c_block_data(addr_G, ADS1115_REG_POINTER_CONFIG, CONFIG_REG)

	def setDifferential(self):
		global addr_G
		if self.channel == 0:
			CONFIG_REG = [ADS1115_REG_CONFIG_OS_SINGLE | ADS1115_REG_CONFIG_MUX_DIFF_0_1 | mygain | ADS1115_REG_CONFIG_MODE_CONTIN, ADS1115_REG_CONFIG_DR_128SPS | ADS1115_REG_CONFIG_CQUE_NONE]
		elif self.channel == 1:
			CONFIG_REG = [ADS1115_REG_CONFIG_OS_SINGLE | ADS1115_REG_CONFIG_MUX_DIFF_0_3 | mygain | ADS1115_REG_CONFIG_MODE_CONTIN, ADS1115_REG_CONFIG_DR_128SPS | ADS1115_REG_CONFIG_CQUE_NONE]
		elif self.channel == 2:
			CONFIG_REG = [ADS1115_REG_CONFIG_OS_SINGLE | ADS1115_REG_CONFIG_MUX_DIFF_1_3 | mygain | ADS1115_REG_CONFIG_MODE_CONTIN, ADS1115_REG_CONFIG_DR_128SPS | ADS1115_REG_CONFIG_CQUE_NONE]
		elif self.channel == 3:
			CONFIG_REG = [ADS1115_REG_CONFIG_OS_SINGLE | ADS1115_REG_CONFIG_MUX_DIFF_2_3 | mygain | ADS1115_REG_CONFIG_MODE_CONTIN, ADS1115_REG_CONFIG_DR_128SPS | ADS1115_REG_CONFIG_CQUE_NONE]

		bus.write_i2c_block_data(addr_G, ADS1115_REG_POINTER_CONFIG, CONFIG_REG)

	def readValue(self):
		"""Read data back from ADS1115_REG_POINTER_CONVERT(0x00), 2 bytes
		raw_adc MSB, raw_adc LSB"""
		global coefficient
		global addr_G
		data = bus.read_i2c_block_data(addr_G, ADS1115_REG_POINTER_CONVERT, 2)

		# Convert the data
		raw_adc = data[0] * 256 + data[1]

		if raw_adc > 32767:
			raw_adc -= 65535
		raw_adc = int(float(raw_adc)*coefficient)
		return {'r' : raw_adc}

	def readVoltage(self,channel):
		self.setChannel(channel)
		self.setSingle()
		time.sleep(0.1)
		return self.readValue()

	def ComparatorVoltage(self,channel):
		self.setChannel(channel)
		self.setDifferential()
		time.sleep(0.1)
		return self.readValue()

File: ADS1115_ReadVoltage.py

import sys
sys.path.append('../')
import time
from CQRobot_ADS1115 import ADS1115
ADS1115_REG_CONFIG_PGA_6_144V        = 0x00 # 6.144V range = Gain 2/3
ADS1115_REG_CONFIG_PGA_4_096V        = 0x02 # 4.096V range = Gain 1
ADS1115_REG_CONFIG_PGA_2_048V        = 0x04 # 2.048V range = Gain 2 (default)
ADS1115_REG_CONFIG_PGA_1_024V        = 0x06 # 1.024V range = Gain 4
ADS1115_REG_CONFIG_PGA_0_512V        = 0x08 # 0.512V range = Gain 8
ADS1115_REG_CONFIG_PGA_0_256V        = 0x0A # 0.256V range = Gain 16
ads1115 = ADS1115()

while True :
    #Set the IIC address
    ads1115.setAddr_ADS1115(0x48)
    #Sets the gain and input voltage range.
    ads1115.setGain(ADS1115_REG_CONFIG_PGA_6_144V)
    #Get the Digital Value of Analog of selected channel
    adc1 = ads1115.readVoltage(1)
    time.sleep(0.2)
    print(" A1:%dmV "%(adc1['r']))

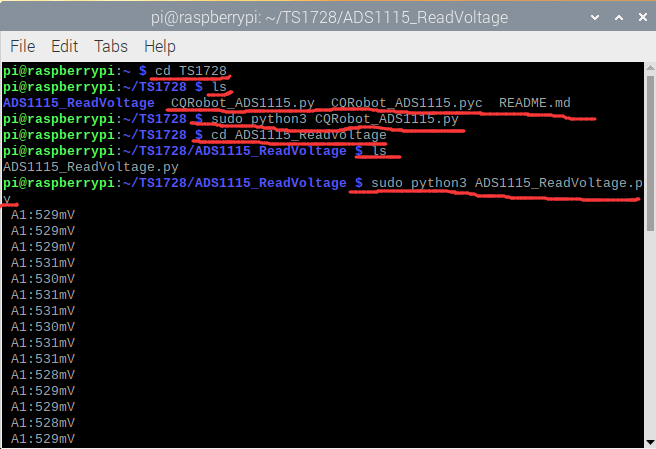

Run the code

Note: Make sure that the I2C address from its default (0x48);

Note: Enable "Interfacing Options - P5 I2C" by typing the below command in the terminal:

sudo raspi-config

Run the code:

cd TS1728
ls
sudo python3 CQRobot_ADS1115.py
cd ADS1115_ReadVoltage
ls
sudo python3 ADS1115_ReadVoltage.py
