Enclosed Speaker (3 W, 8 ohm)-CQR0508

Introduction

CQRobot painstakingly deploys this passive speaker small speaker for the Makers and electronic enthusiasts, this small passive speaker with JST PH2.0 interface, the internal resistance is 8 ohms, the power of it is 3 watts. Strip size, with mounting screw, suitable for all kinds of sound source fabrication, the sound is clear and melodious without distortion.


Features

  • Applied to TV, Advertising machine,Integrated machine special speaker, Robot, DIY production and other projects.

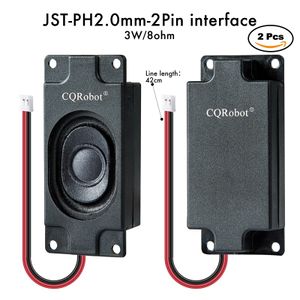

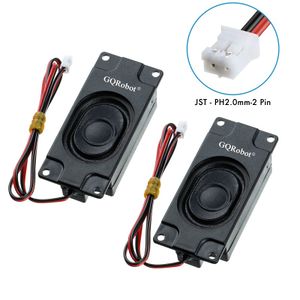

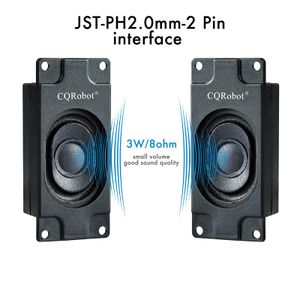

  • JST-PH2.0 interface passive speaker small horn, 3 watts power, 8 ohm impedance.
  • Long size with the screw holes of installation, suitable for all kinds of sound source fabrication, the sound is clear and melodious without distortion.

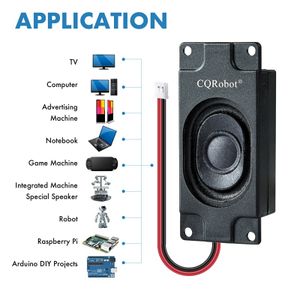

APPLICATION

  • TV
  • Advertising machine
  • Integrated machine special speaker
  • Robot
  • Raspberry Pi and Arduino DIY Projects

Parameters

Type value
Magnetic Hugh 12.5 * 2.0
Power rated power / maximum power 2.0W / 3.0W
Impedance 8 Ohms Plus/Minus 15%
Resonance frequency 450 HZ Plus/Minus 120 HZ
S.P.L 86dB Plus/Minus 3 dB Ref 1.0W/0.5M
Effectine freq band Fo to 20 KHZ MAX:20 dB

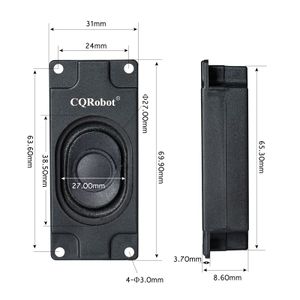

Screw hole distance 24 * 63 mm
Size 70 * 31 * 15 MM
Total weight 24g

Display

File:CQRobot-mp4-1.mp4


SHIPPING LIST

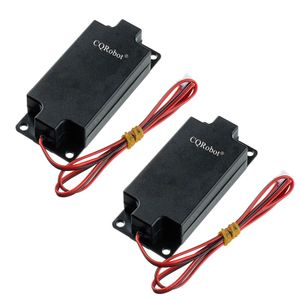

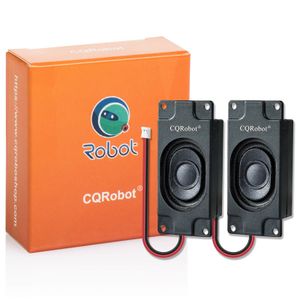

  • 2 * Passive speaker


DOCUMENTS

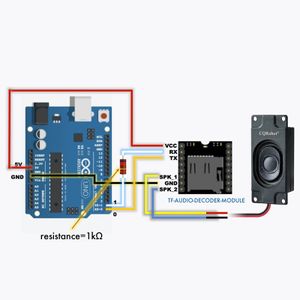

File:(requires an additional purchase)Audio Player-Mini-mp3.zip
